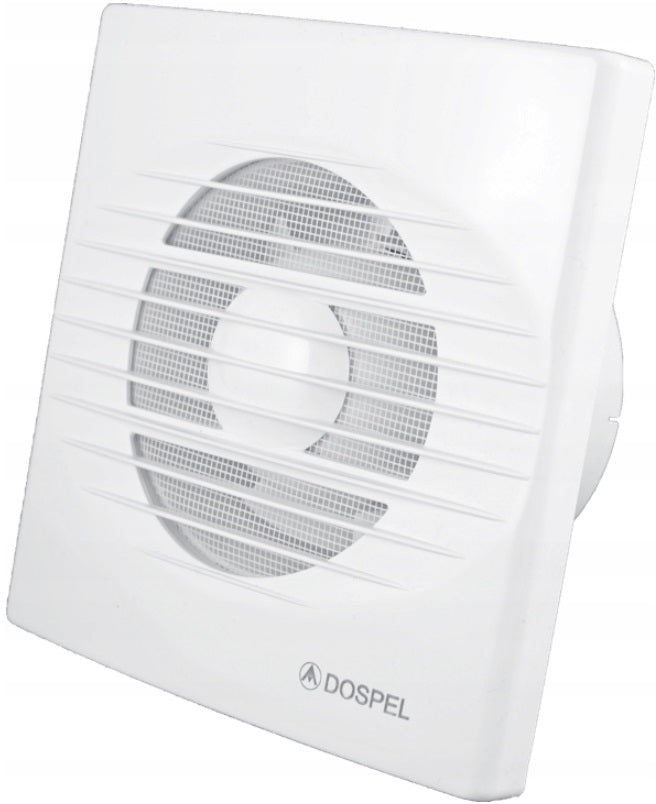

Rico Axial Bathroom Extraction Fan, 120mm

Description

This Rico Ø120 axial fan is engineered from white ABS plastic to deliver efficient, unobtrusive ventilation in homes, offices or light-industrial spaces. Its compact, wall- or duct-mounted design blends seamlessly with any interior décor while providing reliable air extraction.

Rated IP X4 for protection against water splashes and Class II insulated for enhanced electrical safety, it’s built for continuous, low-maintenance operation. Sleeve bearings ensure smooth, quiet performance, and the high-speed motor (2 650 rpm) draws just 0.13 A at 17 W, making it energy-efficient and dependable up to 40 °C ambient.

Key Features & Performance

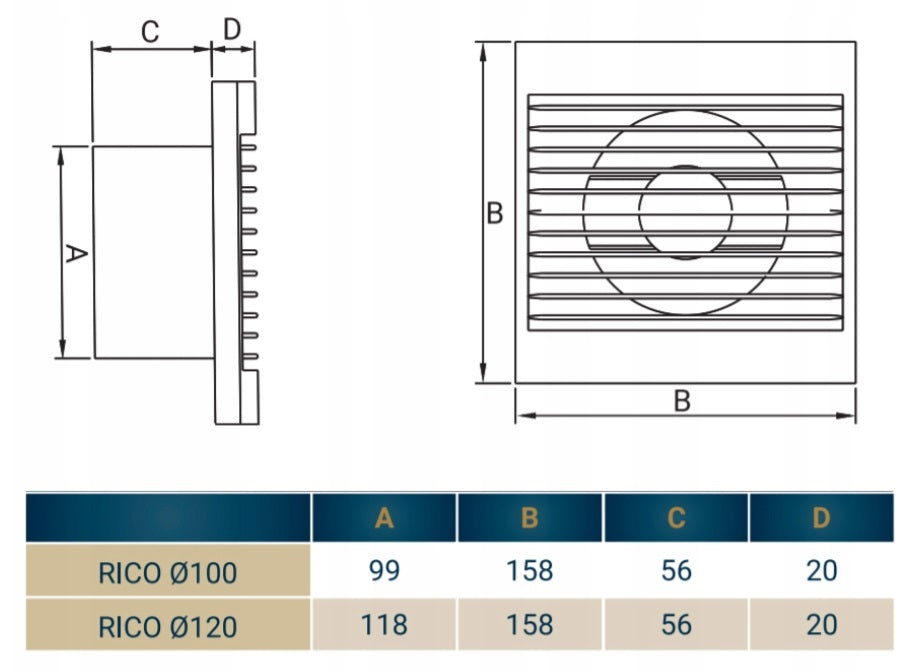

• Size: 120 mm diameter for easy integration into standard ductwork.
• Airflow: 150 m³/h at 0 Pa static pressure.
• Static pressure: 49 Pa (4.99 mm H₂O) maximum.
• Acoustic level: 46 dB(A) at typical operating point.
• Motor specs: 2 650 rpm, 17 W power consumption, 0.13 A current draw.
• Protection: IP X4 splash-proof rating.
• Insulation: Class II—no earth connection required.
• Bearing type: Sleeve bearings for quiet, low-maintenance operation.
• Temperature rating: Reliable performance up to 40 °C ambient.
