Euro Axial Bathroom Extraction Fan, 120mm

Description

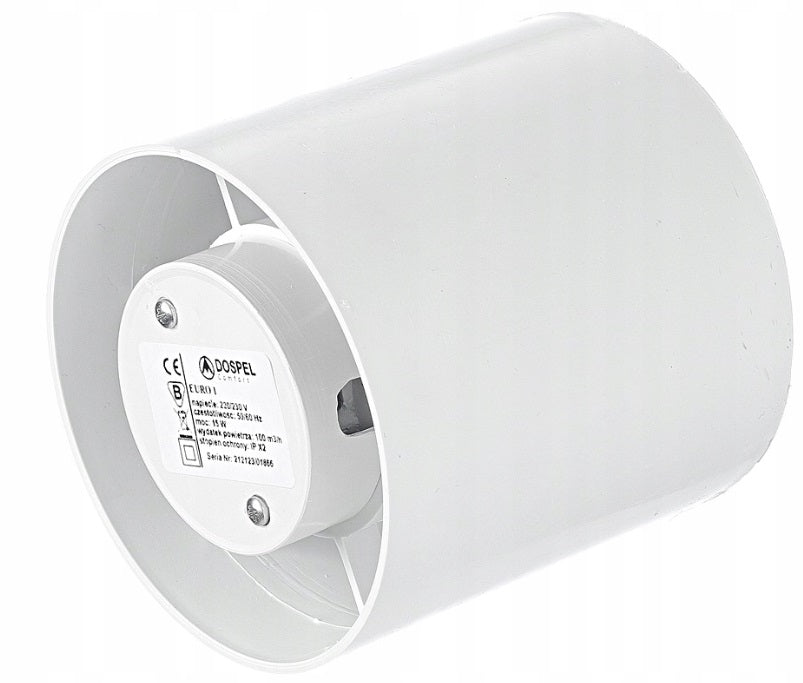

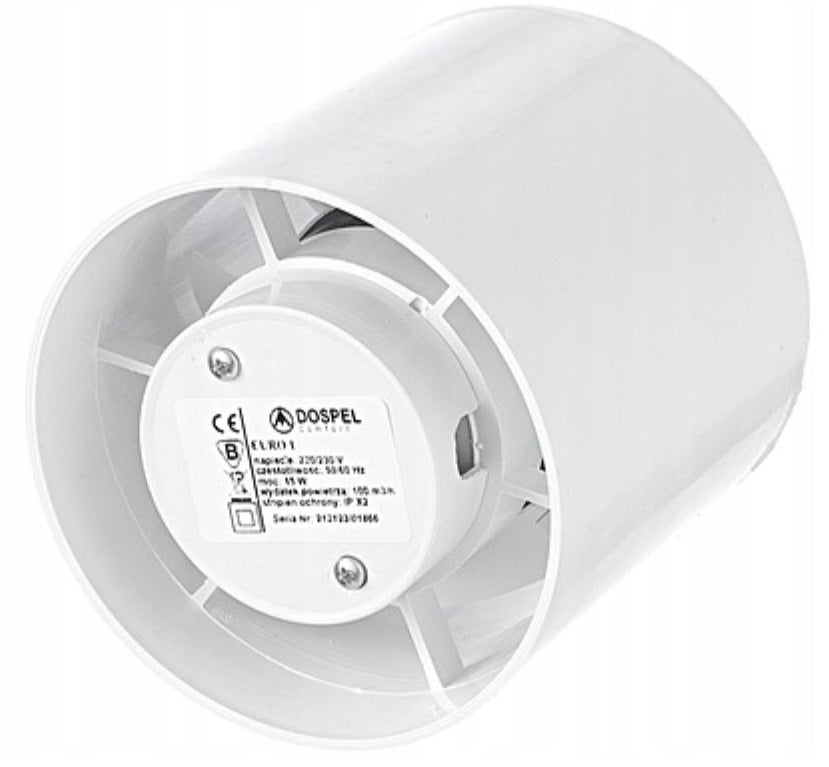

This 120 mm axial fan by Dospel is crafted from white ABS plastic to provide efficient, discreet ventilation in residential, office and light-industrial settings. Its clean design integrates seamlessly into ducted systems or wall-mounted housings, ensuring optimal air circulation without detracting from your décor.

Rated IPX2 for protection against vertically dripping water (up to a 15° tilt) and featuring Class II insulation for enhanced electrical safety, it’s built for dependable, continuous operation—even in humid or splash-prone environments. Sleeve bearings ensure smooth, quiet performance, and the robust construction is complemented by quality Polish electronics and included power cables for straightforward installation.

Key Features & Performance

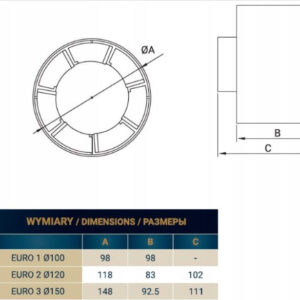

• Size: 120 mm diameter for simple integration into standard ductwork.
• Construction: UV-stabilised, impact-resistant ABS plastic with a crisp white finish.
• Ingress protection: IPX2 drip-proof rating against vertically falling water.
• Electrical safety: Class II insulation—no earth connection required.
• Bearing type: Sleeve bearings for low-maintenance, quiet operation.
• Airflow: 150 m³/h at 0 Pa static pressure.
• Static pressure: 49 Pa (4.99 mm H₂O) maximum.
• Acoustic level: 46 dB(A) at typical operating point.
• Motor specs: 2 650 rpm, 17 W power consumption, 0.13 A current draw.
• Temperature rating: Reliable operation up to 40 °C ambient.
• Installation: Supplied with power cables; fits standard duct outlets via screw-fix frame.
