Euro Axial Bathroom Extraction Fan, 100mm

Description

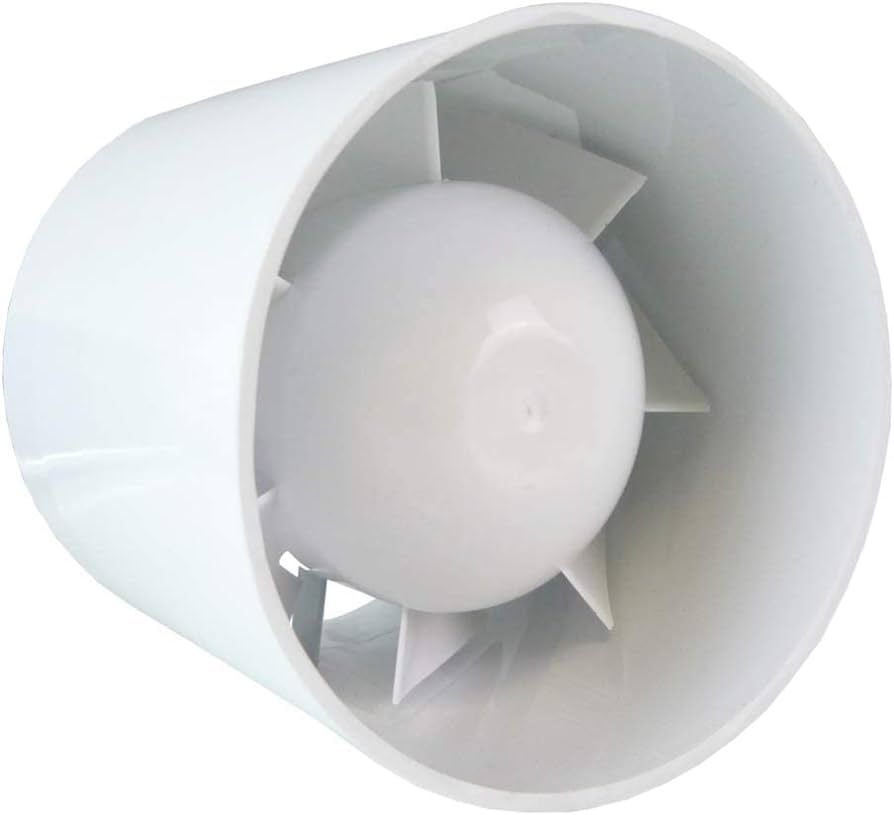

This 100 mm axial fan by Dospel is expertly crafted from white ABS plastic to deliver efficient, unobtrusive ventilation in residential, office or light-industrial settings. Its compact design blends seamlessly into ductwork or wall-mounted housings, ensuring optimal air quality without compromising décor.

Rated IPX2 against dripping water (up to 15° tilt) and Class II insulated for enhanced safety, it’s built for reliable, continuous operation. Sleeve bearings provide smooth, quiet performance, and a high-speed motor (2 650 rpm) draws just 0.12 A at 15 W, making it energy-efficient and dependable up to 40 °C ambient.

Key Features & Performance

• Size: 100 mm diameter for straightforward integration into standard ducting.
• Construction: UV-stable, impact-resistant ABS plastic for lasting performance.
• Ingress protection: IPX2 drip-proof rating.
• Electrical safety: Class II insulation—no earth connection required.
• Bearing type: Sleeve bearings for low-maintenance, quiet operation.
• Airflow: Up to 50 m³/h at 0 Pa static pressure; 30 m³/h at 20 Pa.
• Static pressure: Maximum shut-off around 50 Pa.
• Acoustic level: Approx. 40 dB(A) at typical operating point.
• Motor specs: 2 650 rpm, 15 W, 0.12 A.
• Temperature rating: Reliable performance up to 40 °C ambient.
